Statiflo STX Heat Exchange Motionless Mixer Systems for high viscosity and heat sensitive liquids



An extremely efficient range of heat exchangers for use mainly in laminar flow applications. All Statiflo designs rely on improved radial mixing and flow division for virtual elimination of boundary layers which form the biggest resistance to heat transfer in laminar flow.

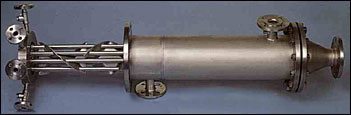

Statiflo STLX Laminar Flow Heat Exchange Static Mixer (Low Pressure)



The STX range comprises:

  • STTX small diameter (15 – 50mm) double pipe version of the Series 100 static mixer with STT elements
  • STSX small diameter (65 – 125mm) double pipe version of the Series 100 mixer and Series 200 sanitary mixer with STS elements
  • STLX medium diameter (150 – 200mm) version of the Series 100 mixer with STL elements, internal heat transfer tubes and optional external jacket
  • STMX medium to large diameter (+250mm) version of the Series 650 mixer with STM elements, internal heat transfer tubes and optional external jacket



Statiflo STMX Laminar Flow Heat Exchange Static Mixer (High Pressure)



Key Benefits:

  • Reduction or elimination of boundary layers, virtually eliminating film resistances
  • High overall heat transfer coefficient
  • Virtual elimination of temperature profile
  • No hot or cold spots
  • Lower pressure drop
  • Allows operation close to phase change temperatures
  • Approaches ideal plug flow
  • Compact design
  • No moving parts
  • No spares requirement
  • Minimal maintenance



Statiflo STMX Laminar Flow Heat Exchange Static Mixer (Low Pressure)



Applications include:

  • Polymer cooling and heating
  • Adhesives and resins
  • Greases
  • Paraffin waxes
  • Sauces, soups, ketchup
  • Chocolate
  • Sugar solutions
  • Paste
  • Pasteurising
